Of all the resin 3D printing technologies out there, Masked Stereolithography (MSLA) is becoming a major force in making high-precision 3D printing more accessible, thanks to its unique imaging principle and standout cost-effectiveness.
Unlike traditional SLA, which uses a laser beam to trace and cure resin point-by-point, MSLA uses a UV LED array combined with an LCD screen as a mask to cure an entire layer all at once. This shift in technology means print speeds are significantly faster, while still maintaining high precision and great surface quality.
How MSLA Really Works
MSLA, which stands for Masked Stereolithography, is a major branch of stereolithography. Its operating principle is pretty unique compared to other resin 3D printing tech. The core idea behind MSLA is the “mask.” It uses a high-intensity UV LED array as its light source. An LCD screen selectively blocks this light, only letting UV rays pass through in specific areas to cure the resin.
Each pixel on the LCD screen acts like a tiny switch, controlling whether light reaches the resin vat, precisely shaping each layer.
Unlike SLA’s point-scanning or DLP’s area projection, MSLA works by exposing entire layers instantly for high-speed printing. Because each layer cures in a flash, print speed isn’t affected by a model’s complexity, only its height. This makes MSLA especially great for small-batch production. Printing one object takes the same amount of time as printing a whole plate of them, which massively boosts efficiency.
The Upsides and the Real-World Hurdles
MSLA tech has grabbed market share quickly because of its multiple advantages, especially when it comes to print speed and cost control. On print speed, MSLA clearly beats traditional SLA. Since MSLA cures a whole layer of resin in one go, while SLA has to scan everything point-by-point with a laser, the latter gets much slower when you’re printing multiple objects.
For precision, the XY resolution of MSLA is determined by the pixel density of the LCD screen. Nowadays, with 4K, 6K, and even 8K LCD screens being used, MSLA printers can achieve some seriously jaw-dropping detail.
Cost is another area where MSLA shines. Manufacturing costs for MSLA equipment are far lower than for SLA and DLP machines. This puts high-quality resin 3D printing well within reach for everyday consumers and small businesses.
Of course, MSLA isn’t without its challenges. The LCD screen is a consumable part with a limited lifespan and needs regular replacement, which adds to the long-term cost of ownership. Also, MSLA prints can sometimes show a “pixelation effect” on the X/Y axes. The print quality is heavily dependent on the pixel density of that LCD screen.
The Resin: The Heart of MSLA Tech
In MSLA 3D printing, the photopolymer resin isn’t just the medium that forms the object—it directly determines the final part’s properties and what it can be used for.
Your choice of resin should be based on the final use of the part, not just the printing technology. Different applications need resins with different characteristics.
For applications demanding high precision and a good surface finish, standard resins are the most common choice. They’re stiff, result in smooth surfaces with fine details, and are great for concept models and display pieces. Engineering applications often need tough resins. These materials mimic the behaviour of engineering plastics, offering great impact resistance, fatigue resistance, and high ductility. You can even create strong, functional snap-fit joints with them. Specialized fields have very specific resin requirements. Dentistry needs biocompatible resins, jewelry casting requires castable resins, and high-temperature environments call for heat-resistant resins. A resin’s mechanical properties and printing behaviour are equally important. Tensile strength, impact absorption, flexibility, surface elasticity, curing speed, and interlayer adhesion are all key factors to consider when selecting a resin.
Where It’s Used
MSLA 3D printing, with its high precision, efficiency, and cost benefits, has made its way into numerous industries, becoming a vital tool for digital manufacturing. Its value is particularly clear in the medical and dental fields. Using biocompatible resins, it’s possible to produce surgical guides, dental models, and clear aligners, enabling high-precision, batch-produced custom parts. HeyGears, for instance, has developed a complete lineup of MSLA 3D printing materials and industrial-grade, high-precision 3D printing equipment.
The jewelry industry is another major adopter of MSLA tech. Designers use high-resolution resins to print intricate wax patterns, perfectly replicating every detail through the lost-wax casting process, significantly speeding up new product development.
In industrial manufacturing and R&D, engineers directly use high-toughness or heat-resistant resins to print high-precision functional prototypes for assembly testing, fluid flow analysis, or heat resistance validation.
Education, research, and the creative industries also benefit hugely from MSLA. It allows for the quick transformation of digital designs into high-quality physical objects, useful for things like molecular models, archaeological reproductions, and art pieces.
Gear Spotlight: HeyGears’ UltraCraft Series

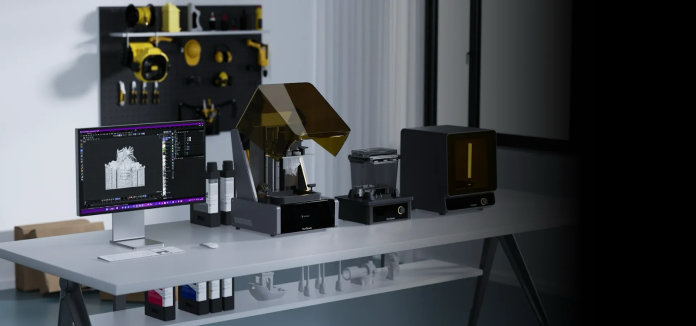

Among the many MSLA 3D printer brands, HeyGears stands out with its excellent technology integration and deep optimizations for specific industries, giving it a unique competitive edge. The HeyGears Reflex RS 3D Printer is another notable MSLA 3D printer from HeyGears. It uses a 29.7µm pixel size, combined with a high-intensity, highly consistent UV light source, to deliver exceptional print quality and accuracy. This machine is equipped with an active force monitoring system that reads force data 80 times per second, dynamically adjusting the peeling force and retraction speed for each layer as the Z-axis load changes.
The Reflex RS’s automatic resin-filling system works via a plunger in the resin bottle. When the bottle is inserted into the back of the machine, a tab in the resin vat pushes the plunger down. It’s a simple, effective, and clean method. Print consistency is another strong suit of HeyGears’ equipment. By testing and recording light source aging data, the printers provide automatic light intensity compensation, ensuring consistent print results throughout the entire lifespan of the machine.
As resin 3d printer companies like HeyGears continue to push technological boundaries, the precision and efficiency of MSLA 3D printing will keep improving. More specialized resin materials will be developed, expanding into high-value fields like healthcare and aerospace.
Looking ahead, as LCD screens become cheaper and their resolutions increase, the price advantage of MSLA technology will become even more pronounced. This will further lower the barrier to entry for high-precision 3D printing, allowing more industries and creators to benefit from the conveniences of digital manufacturing.
MSLA technology is changing how we create and manufacture. Its ability to turn digital designs into high-quality physical products has firmly established it as a core component of modern digital production.
